FieldTalk™ Modbus® Slave Library C++ Editions

---

MbusSlaveServer Class Reference

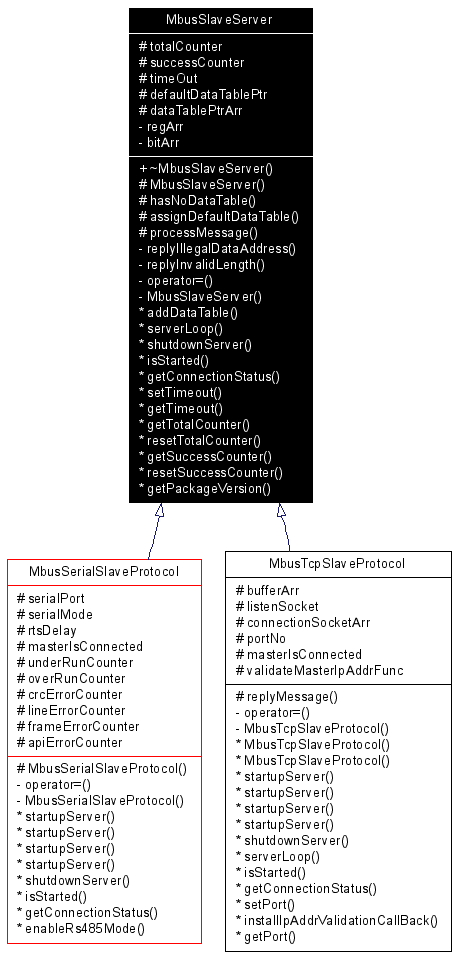

Inheritance diagram for MbusSlaveServer:

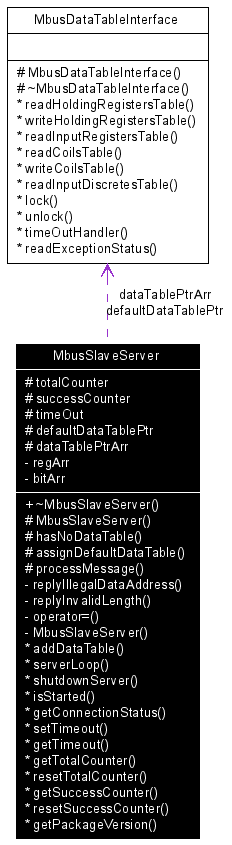

Collaboration diagram for MbusSlaveServer:

List of all members.

---

Detailed Description

Base class which implements the Modbus® server engine.

This class realises the server engine. The server engines processes Modbus messages, parses the function codes and upon receipt of a valid master query it calls Data Provider methods to exchange data with the user application. For a more detailed description which Modbus data and control functions have been implemented in the server engine see section Server Functions common to all Protocol Flavours.

See also:

MbusSlaveServer

Server Functions common to all Protocol Flavours

Server Management Functions
int	addDataTable (int slaveAddr, MbusDataTableInterface *dataTablePtr)
	Associates a protocol object with a Data Provider and a slave address.
virtual int	serverLoop ()=0
	Modbus slave server loop.
virtual void	shutdownServer ()
	Shuts down the Modbus Server.
virtual int	isStarted ()=0
	Returns if server has been started up.
virtual int	getConnectionStatus ()=0
	Associates a protocol object with a Data Provider and a slave address.
Protocol Configuration
long	setTimeout (long timeOut)
	Configures master transmit time-out supervision.
long	getTimeout ()
	Returns the master time-out supervision value.
Transmission Statistic Functions
unsigned long	getTotalCounter ()
	Returns how often a message transfer has been executed.
void	resetTotalCounter ()
	Resets total message transfer counter.
unsigned long	getSuccessCounter ()
	Returns how often a message transfer was successful.
void	resetSuccessCounter ()
	Resets successful message transfer counter.
Utility Functions
static char *	getPackageVersion ()
	Returns the package version number.
Public Member Functions
virtual	~MbusSlaveServer ()
	Destructor.
Protected Member Functions
	MbusSlaveServer (MbusDataTableInterface *dataTablePtr=NULL)
	Constructs a MbusSlaveServer object and associates it with a Data Provider.

---

Constructor & Destructor Documentation

MbusSlaveServer (  MbusDataTableInterface *  dataTablePtr = NULL  )  [protected]

Constructs a MbusSlaveServer object and associates it with a Data Provider. Parameters: dataTablePtr  Modbus data table pointer. Must point to a Data Provider object derived from the MbusDataTableInterface class. The Data Provider is the interface between your application data and the Modbus network.

~MbusSlaveServer (   )  [virtual]

Destructor. Shuts down server and releases any resources.

---
